Category: AM/FM Radio

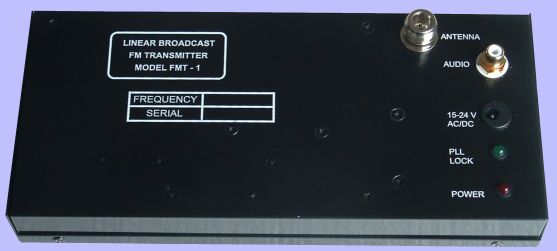

FMT1
2 Watt FM        Transmitter



The Linear Broadcast FMT1  FM Transmitter is designed with small size and low cost in mind. It has the same high signal quality and power level as the FMT2 but is built into a space saving case and is normally powered from a plugpack which is supplied with the unit. It may also be powered from a 24volt solar supply.



SPECIFICATIONS  :   FMT1



Audio Input:

Mono (RCA)

200mV to 1V, 47kW unbalanced

Output Power:



0.1W to 2W

Controls:



Audio input level, RF output power, freq.  4 rotary switches for frequency

Frequency Range:



87 to 108MHz in 100kHz steps

Carrier Freq. Stability:



0.0005%

PLL Phase Jitter:



0.001%

Spurious:



< -65dBc (Mono & MPX)

Pre-Emphasis:



50µs (75µs by request)

Frequency Response:



30Hz to 15kHz

Total Distortion:



<0.04%

Signal to Noise:



> 68dB

Case Dimensions:



243mm * 110mm* 32mm

Weight:



700g

Power Supply:



15 to 26v AC or DC, 0.6 A, 2.1mm plug
