Category: AM/FM Radio

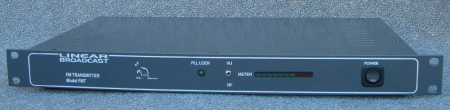

FMT2 / FMT10
2 & 10 Watt FM        Transmitters


The Linear Broadcast FMT range of low to medium power FM Transmitters is designed to fill the needs of the narrowcaster requiring high performance and reliability at a cost effective price. FMT units are self-contained in a 1RU rack case and provide fully adjustable power output of up to 10 Watts and a user-programmable Phase Locked Loop frequency via simple and accessible rotary switches. These transmitters now feature LED Bargraph power and modulation metering, allowing   at-a-glance checks.







SPECIFICATIONS: FMT2 / FMT10



Audio Input:

Mono (RCA)
MPX (BNC)

200mV to 1V, 47kW unbalanced
1V to 4V p/p 10kW

Output Power:



0.1W to 2W / 0.5W to 10W

Controls:



Audio input level, RF output power, freq.  4 rotary switches for frequency

Frequency Range:



87 to 108MHz in 100kHz steps

Carrier Freq. Stability:



0.0005%

PLL Phase Jitter:



0.001%

Spurious:



< -65dBc (Mono & MPX)

Pre-Emphasis:



Flat / 50µS

Frequency Response:

Mono
MPX

30Hz to 15kHz
30Hz to 65kHz

Total Distortion:



<0.04%

Signal to Noise:



> 68dB (Mono & MPX)

Dimensions:



1RU rack case x 250mm deep

Weight:



3kg (FMT10: 5kg)

Power Supply:



240V AC, 50Hz, 20VA (FMT10: 80VA), IEC 3 pin socket
